What is Utility Surveying?
Utility surveying is the process of identifying and mapping underground services like:
Water mains
Gas pipelines
Electric cables
Telecommunications networks
Sewage and drainage systems
Accurately locating these services before starting any construction work is critical. Utility strikes—accidentally damaging or disturbing buried services—can result in delays, hefty fines, safety risks, and costly repairs. Proper utility surveying helps prevent these issues by providing a clear picture of what lies beneath the surface.
At Cadmap Ltd, we use Ground Penetrating Radar (GPR) as part of our utility mapping services to ensure maximum accuracy and reduce the risk of utility-related issues during your project.
The GPR Mapping Process: How It Works
Ground Penetrating Radar (GPR) is a non-intrusive and highly effective technique used to detect and map underground utilities. Here's a step-by-step overview of how we use GPR for utility surveying:
1. Initial Site Assessment
Before starting the GPR mapping, we conduct an initial site assessment to understand the layout, potential obstructions, and access points. This step ensures that our survey is efficient and covers the most critical areas of your site.
We review existing utility records (where available) to understand what may be underground.
We identify obstacles that could interfere with the GPR survey, such as large structures, paved surfaces, or heavy vehicle traffic.
2. Survey Setup
Once the assessment is complete, we set up the GPR equipment at strategic points around the site. The GPR unit consists of an antenna that sends high-frequency electromagnetic waves into the ground. These waves are reflected back to the antenna when they hit an object, such as a utility pipe or cable.
3. Data Collection
As the GPR system scans the ground, it collects data on subsurface conditions. The electromagnetic waves pass through different materials—soil, concrete, rock—and are reflected back at varying intensities depending on the material they encounter.
Metallic utilities (like copper and steel pipes) reflect waves strongly, making them easier to detect.
Non-metallic utilities (like plastic pipes or cables) reflect waves with less intensity, but GPR can still detect them, depending on the depth and material.
4. Data Processing and Interpretation
The GPR system produces a series of “radargrams” (images of subsurface structures) based on the reflected signals. These radargrams are then processed and interpreted by our trained surveyors at Cadmap Ltd to pinpoint the exact location, depth, and type of each utility.
Our team examines the radargram data for distinctive patterns, helping to identify buried pipes, cables, and other underground features.
The processed data is translated into 2D or 3D representations of the underground utilities.
5. Verification
In some cases, we may need to perform additional checks to verify the utility locations. This could involve using other techniques, such as electromagnetic location (EML), or in rare cases, exposing the utilities through trial pits (small, controlled excavations) to confirm the findings.
Overlaying Utility Mapping on Topographical Surveys
At Cadmap Ltd, we understand the importance of creating accurate, detailed maps for designers and developers. Once we’ve completed the utility mapping with GPR, we integrate the results with the topographical survey to create a comprehensive site plan.

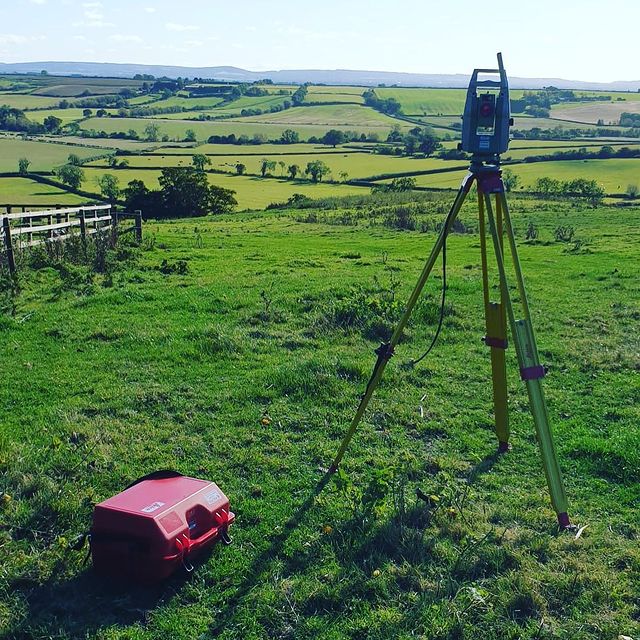

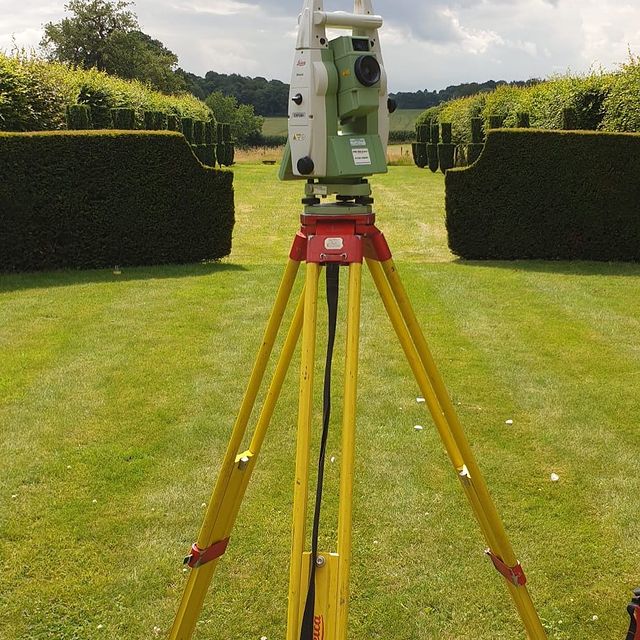

1. Topographical Survey: What It Is
A topographical survey provides detailed information about the physical features of a site, including:
Elevations
Slopes
Surface contours
Natural features (such as trees, rocks, and water bodies)
Existing structures (such as buildings, roads, and fences)
Topographical surveys give your project team the geographic context needed to plan the positioning of new structures, foundations, and services.
2. Merging Utility and Topographical Data
Once both the utility mapping and topographical survey are complete, we overlay the utility data onto the topographical survey using CAD (Computer-Aided Design) software. This process involves:
Aligning the utility mapping results with the surface-level data from the topographical survey.
Layering the utility information over the topographical features (such as roads, buildings, and natural features), providing a clear visual representation of where underground utilities lie in relation to the surface structures.
Creating 2D or 3D CAD drawings that display both the utility layout and the topographical features, helping designers and developers make informed decisions.
3. Providing Accurate CAD Plans for Designers and Developers
The final output is a detailed and accurate CAD plan that provides your design team with all the information needed to proceed with your project. The CAD plan will show:
The location and depth of each underground utility
The position of buildings, roads, and other structures
Key elevations, contours, and site features
Potential risks or conflicts between underground utilities and planned construction
This accurate and up-to-date information helps your design team to avoid conflicts during the design process, ensuring that no utilities are disturbed or damaged during construction. It also supports effective communication between the different stakeholders involved in the project.
Why Choose Cadmap Ltd for Utility Surveying and GPR Mapping?
At Cadmap Ltd, we pride ourselves on delivering highly accurate and reliable utility surveys that help our clients avoid costly mistakes and delays. Our utility surveying process includes:
State-of-the-art GPR equipment: We use the latest GPR technology to ensure precision and reliability in locating utilities.
Experienced surveyors: Our skilled team interprets GPR data with a high level of expertise, ensuring accurate results every time.
Integration with CAD: We seamlessly combine utility mapping with topographical data to create comprehensive, easy-to-use CAD plans.
Comprehensive reporting: Along with the CAD plans, we provide detailed reports that document our findings and explain the methodology used in the survey.
Whether you’re working on a new development, an infrastructure upgrade, or a renovation project, our utility surveying services provide the clarity and confidence you need to proceed with your work safely and efficiently.
Contact Cadmap Ltd for Your Utility Surveying Needs
Utility surveying is an essential part of any construction or design project. At Cadmap Ltd, we combine the power of Ground Penetrating Radar with accurate topographical data to give you the most detailed, reliable, and precise maps for your project.
Contact us today to discuss your utility surveying needs and find out how we can support your project with our expert surveying services.
